PIPER

PAGE INDEX:
Go to: Windshields

Go to: Pilot and Vent Windows
Go to: Door Windows
Go to: Rear Windows
Go to: Landing Light Lenses
---------------------------
OTHER PAGES:
Go to: Knots 2 U (Specializing in Speed Mod's)
Go to: Miscellaneous Piper Parts
Go to: Windshield and Window Cleaners
Go to: Special Drills for Plastic
--------------------------
Special Instructions
Go to: STC'd One Piece Windshield conversion instructions
Go to: STC'd Pilot and Door Window installation instructions

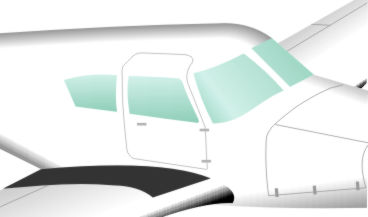

PA-24 "Comanche"
PA-30 "Twin-Comanche"



MODEL NUMBER SERIAL NUMBERS
PA-24
PA-24-250
24-1 ~ 3687
PA-24-260 24-4000 ~ 4299 Except 4247
PA-24-400 26-2 thru 26-148
PA-30 30-2 thru 30-901 except 30-853



Windshields:



Thickness

Clear
(W-)
Green
(W/T-)
Gray
(W/G-)
SC Green
(SC-W/T-)
SC Gray
(SC-W/G-)
Part Number
(G.L.A.P.)

Right or
Left

.125"

$257.52 $309.02 $309.02 $417.18 $417.18

2044-RH or
2044-LH

Thick Right or
Thick Left

.187"

$283.27 $339.92 $339.92 $458.90 $458.90

2044-187-RH or
2044-187-LH

Extra Thick Right or
Extra Thick Left

.250"

$329.05 $394.86 $394.86 $533.06 $533.06

2044-250-RH or
2044-250-LH



STC'd 1pc. ( Eliminates Center strip )

.187"

$603.73 $724.48 $724.48 $978.05 $978.05

2051-187

Extra Thick STC'd 1pc. ( Eliminates Center strip )

.250"

$603.73 $724.48 $724.48 $978.05 $978.05

2051-250




Pilot and Vent Windows



Details

Thickness

Clear
(W-)
Green
(W/T-)
Gray
(W/G-)
SC Green
(SC-W/T-)
SC Gray
(SC-W/G-)
Part Number
(G.L.A.P.)

OUTER
(Original Framed Vent Type)



.125"

$197.43 $236.92 $236.92 $319.84 $319.54

2069-LH

Thick

.187"

$208.88 $250.65 $250.65 $338.38 $338.38

2069-187-LH

Extra Thick
(Replaces INNER and OUTER )


.250"

$223.18 $267.82 $267.82 $361.55 $361.55

2069-250-LH

INNER   .060" $ 88.70 1196

.

VENT
(Original Framed Vent Type)

.125"

$ 47.21 $ 56.65 $ 56.65 $ 76.48 $ 76.48

1041

Extra Thick

.250"

$ 61.52 $ 73.82 $ 73.82 $ 99.66 $ 99.66

1041-250

ASSEMBLED With Frameless Vent -

Piper Style Hinge and Latch Assembly



Details

.125"

$433.65 $488.87 $488.87 $604.84 $604.84

2258

Thick

Details

.187"

$460.83 $521.49 $521.49 CALL CALL

2258-187

Extra Thick

Details

.250"

$493.73 $560.97 $560.97 CALL $702.18

2258-250

.



Door Window



Details

Thickness

Clear
(W-)
Green
(W/T-)
Gray
(W/G-)
SC Green
(SC-W/T-)
SC Gray
(SC-W/G-)
Part Number
(G.L.A.P.)
OUTER

.125"

$125.90 $151.08 $151.08 $203.95 $203.95

2069-RH

Thick

.187"

$148.79 $178.55 $178.55 $241.04 $241.04

2069-187-RH

Extra Thick
(Replaces INNER and OUTER )


.250"

$177.40 $212.88 $212.88 $287.39 $287.39

2069-250-RH

INNER .060" $ 85.84 1197
ASSEMBLED With Frameless Vent -

With Frameless Vent -
Piper Style
Hinge and Latch Assembly



Details

.125"

$377.87 $418.78 $418.78 $504.71 $504.71

2259

Thick

Details

.187"

$416.49 $465.14 $465.14 CALL CALL

2259-187

Extra Thick

Details

.250"

$463.70 $521.79 $521.79 CALL $643.77

2259-250




Rear Windows



Thickness

Clear
(W-)
Green
(W/T-)
Gray
(W/G-)
Dark Gray
(W/XT-)
SC Green
(SC-W/T-)
SC Gray
(SC-W/G-)
Part Number
(G.L.A.P.)
OUTER   Right or
Left

.125"

$105.87 $127.04 $127.04 $171.51 $171.51 $171.51

2066-RH or
2066-LH

Thick Right or
Left

.187"

$124.47 $149.36 $149.36 $149.36 $201.64 $201.64

2066-187-RH or
2066-187-LH

Extra Thick
(Replaces INNER and OUTER )
Right or
Left


.250"

$135.91 $163.09 $163.09 $163.09 $220.18 $220.18

2066-250-RH or
2066-250-LH

INNER Right or
Left
.060" $ 72.96 $ 87.56 $ 87.56 $ 87.56 CALL CALL 1198



Landing Light Lens



Thickness

Clear
(W-)

Part Number
(G.L.A.P.)

Right or
Left

.080"

$ 68.67

2195-RH or
2195-LH
