2277

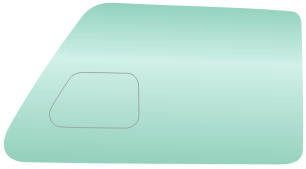

Image is intended for representational purposes only, actual product may vary from drawing
Description:
This Cessna 310 Assembled Pilot Window was designed and approved to be an upgraded replacement of an original Cessna 310 Pilot Window. We took a tried and true Striker and Hinge design and applied it to the 310. The Vent window is similar to a Beechcraft part but is not interchangeable.
Features:
FAA/PMA approved Replacement Pilot Window Assembly
Made of .250" (.250") Plexiglas, Polycast, Cyro, or other Approved Material
Part has shape
Vent hole is approximately same area as original 310 Vent Window
Price Includes FAA/PMA approval Tag and Installation instructions
Meets or EXCEEDS all FAA/PMA requirements
Windows are FAA/PMA Approved in Clear, Green, Gray.
Can Ship Fed EX or UPS
Part is ready to install (little if any trimming may be necessary)
Drilling of the part may be necessary for installation.
Approved for:
| CESSNA | |
| Model | Serial Numbers |
| 310 |
310K, 310L, 310N, 310P, T310P, 310Q, T310Q, 310R, T310R All Serial Numbers |
| 320 | 320E & 320F All Serial Numbers |
 |
|

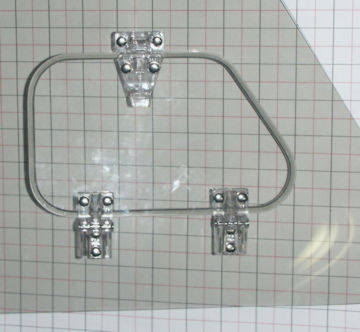

View of Vent Window & Hardware From INSIDE |
|
|
 |

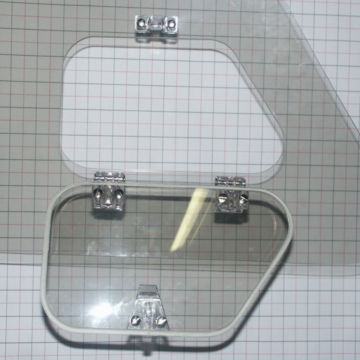

| View of Vent Window & Hardware From INSIDE OPEN |
|
|
 |

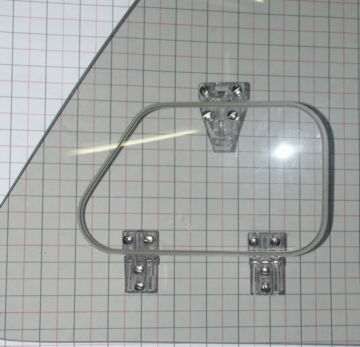

| View of Vent Window & Hardware From OUTSIDE |
| Alternate Part numbers: | NONE |
| Installation Instructions: | |
| Use appropriate Cessna Service manuals |
Part number Replacement Table:
| GLAP Part # | ... | OEM Part Number |
| W-2277 | 0891107-2 |
Great Lakes Aero Products can not be held responsible for misinformation on this or any other page contained within this web site. Considerable care has been taken for accuracy of all information. Due to discrepancies found from different sources of information, including information supplied by the aircraft manufactures, we are not responsible for these problems. If a problem, or mistake has been found, please contact us so we can research and correct the problem. thank you
