1220
Image is intended for representational purposes only, actual product may vary from drawing
Description:
For use with fixed Right Door Windows ONLY
Includes Assembled flip down Vent window
Useful for extra ventilation, Photography or aerial observation.
NOTE: the vent window may be located further back on the window if desired.

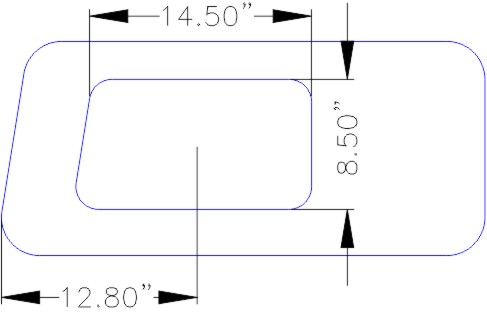

Basic Layout For Illustration purposes only.
Dimensions Typical
Features:
Made of 3/16" (.187") Plexiglas, Polycast, Cyro, or other Approved Material
Uses Durable Urethane Clear Cast hinges, and Acrylic latches.
Pull Knob is Optional
Part is flat
Price Includes FAA/PMA approval Tag and Installation instructions.
Meets or EXCEEDS all FAA/PMA requirements
Windows are FAA/PMA Approved in Clear Green and Gray Tints.
Can Ship Fed EX or UPS
Part is ready to install (little if any trimming may be necessary)
NOTE: The Rubber U-channel may make installation difficult, use sealant only if this is the case. A vinyl tape such as 3M 471 may be used to protect the edge.
Approved for:
| CESSNA | |
| Model | Serial Numbers |
|
172B thru 172P |
48482 ~75759 |
| P172D | All SNS |
| R172E (USAF T-41C) | R172-0257 ~ R172-0301 |
| R172G (USAF T-41C) | R172-0426 & Up |
| 172RG | 172RG0001 ~ 1099 |
| 175B, 175C | 56928 & UP |
| 182D | All SNS |
| 210, 210A | All SNS |
| REIMS AVIATION S.A. | |
| F172D thru F172P | F172-0001 ~ 02194 |
| FR172E thru FR172J | All SNS |
 |
| Latch |
|
|
 |
| Hinge |
| Alternate Part numbers: | NONE |
| Installation Instructions: | |
| Use appropriate Cessna Service manuals |
