Home > Catalog > Piper > PA-32 >  R-301

 3246018 & UP
   R-310T

 3257001 & UP

PIPER

PAGE INDEX:
Go to: Windshield
Go to: Pilot Windows
Go to: Door Windows
Go to: 2nd Windows
Go to: 3rd Windows (LH is Rear Passenger Door)
Go to: Rear Windows (LH is Cargo Door)
Go to: Sun Visors
Go to: Wingtip Lenses
---------------------------
OTHER PAGES:
Go to: Miscellaneous Piper Parts
Go to: Windshield and Window Cleaners
Go to: Special Drills for Plastic

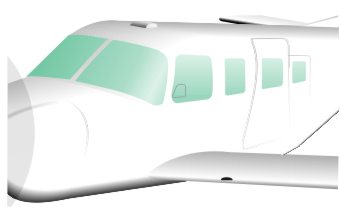

PA-32R-301 (HP) Saratoga II HP

PA-32R-301T (TC) Saratoga II TC

MODEL
NUMBER		 Common
Name		 SERIAL
NUMBERS

PA-32R-301 (HP)

 Saratoga II HP

3246018 & UP.

PA-32R-301T (TC)

 Saratoga II TC

3257001 & UP


Windshields
  Thickness Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)

Right or

Left

.250"

 $557.71 $669.26 $669.26 $903.50 $903.50

2413-RH or

2413-LH


Pilot and Vent Windows
(Frameless Style Vent Window) Details Thickness Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
Pilot window   .125" $313.71 $376.46 $376.46 $508.22 $508.22 2418
Vent window   .250" $112.77 $135.33 $135.33 $182.69 $182.69 2114
Thick Pilot window   .187" $348.57 $418.29 $418.29 $564.69 $564.69 2418-187
Thick Vent window   .312" $135.33 $162.39 $162.39 $219.23 $219.23 2114-312
Super Thick Pilot window   .250" $383.43 $460.11 $460.11 $621.15 $621.15 2418-250
1/4" Side Windows may be more difficult to install
Super Thick Vent window   .375" $161.98 $194.38 $194.38 $262.41 $262.41 2114-375
Pilot windows Assembled with a Vent:
Assembled Pilot with Vent
Frameless Vent type		   Picture .125" $652.26 $737.56 $737.56 $916.68 $916.68 2419
Extra Thick Picture .187" $709.67 $806.45 $806.45 $1,009.69 $1,009.69 2419-187
Super Thick Picture .250" $771.18 $880.27 $880.27 $1,109.34 $1,109.34 2419-250
1/4" Side Windows may be more difficult to install


Door Windows
  Pictures Thickness Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
  .125" $207.09 $248.51 $248.51 $335.49 $335.49 2133-125
Extra Thick   .187" $250.15 $300.18 $300.18 $405.25 $405.25 2133-187
Super Thick .250" $295.26 $354.31 $354.31 $478.32 $478.32 2133-250
1/4" Side Windows may be more difficult to install
Door windows Assembled with a Vent:
Assembled Door with Vent
Frameless Vent type		 Picture .125" $568.22 $632.19 $632.19 $766.53 $766.53 2283
Extra Thick Picture .187" $633.83 $710.93 $710.93 $872.83 $872.83 2283-187
Super Thick Picture .250" $705.59 $797.04 $797.04 $989.09 $989.09 2283-250
1/4" Side Windows may be more difficult to install


2nd Windows
  Thickness Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 Dark Gray
(W/XT-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
  Right or
Left 		.125" $219.40 $263.27 $263.27 $263.27 $355.42 $355.42 2544-RH or
2544-LH
Extra Thick Right or
Left 		.187" $239.90 $287.88 $287.88 $287.88 $388.64 $388.64 2544-187-RH or
2544-187-LH
Super Thick Right or
Left 		.250" $262.45 $314.94 $314.94 $314.94 $425.18 $425.18 2544-250-RH or
2544-250-LH
1/4" Side Windows may be more difficult to install.



3rd windows

LH is Rear Passenger Door Thickness Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 Dark Gray
(W/XT-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
  Right or
Left 		.125" $157.88 $189.46 $189.46 $189.46 $255.77 $255.77 2415-RH or
2415-LH
Extra Thick Right or
Left 		.187" $190.69 $228.83 $228.83 $288.83 $308.92 $308.92 2415-187-RH or
2415-187-LH
Super Thick Right or
Left 		.250" $227.60 $273.12 $273.12 $273.12 $368.71 $368.71 2415-250-RH or
2415-250-LH
1/4" Side Windows may be more difficult to install.


4th windows
LH is Cargo Door Thickness Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 Dark Gray
(W/XT-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
  Right or
Left 		.125" $190.69 $228.83 $228.83 $228.83 $308.92 $308.92 2545-RH or
2545-LH
Extra Thick Right or
Left 		.187" $209.14 $250.97 $250.97 $250.97 $338.81 $338.81 2545-187-RH or
2545-187-LH
Super Thick Right or
Left		 .250" $244.00 $292.80 $292.80 $292.80 $395.28 $395.28 2545-250-RH or
2545-250-LH
1/4" Side Windows may be more difficult to install.



Sun Visors:

Visor only, use original clips Pictures Thickness Dark Gray
(W/XT-)		 Part Number
(G.L.A.P.)
RH or
LH		 .125" $129.18 1139



Wingtip Lenses

  Pictures Thickness Clear
(W-)		 Part Number
(G.L.A.P.)
Right or
Left		 .125" $383.26 2506-RH or
2506-LH


888-826-2043

Order your parts online E-mail us with your questions
Home > Catalog > Piper > PA-32 >  R-301

 3246018 & UP
   R-310T

 3257001 & UP

Price and availability are subject to change without notice. Mistakes happen, mistaken prices will not be honored.
Add Shipping, processing, handling and insurance.
.
