PAGE INDEX:
Go to: Windshield Go to: Pilot Windows Go to: Door Windows Go to: 2nd Windows Go to: 3rd Windows (LH is Rear Passenger Door) Go to: Rear Windows (LH is Cargo Door) Go to: Wingtip Lenses --------------------------- OTHER PAGES: Go to: Miscellaneous Piper Parts Go to: Windshield and Window Cleaners Go to: Special Drills for Plastic
|

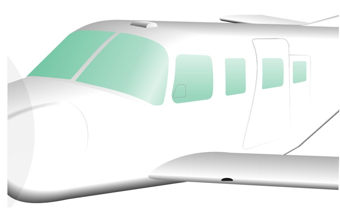

PA-32R-301
(HP)
|
| Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
|
|
Right or Left |
.250" |
$453.05 | $543.65 | $543.65 | $733.93 | $733.93 | 2038-II-250-RH
or 2038-II-250-LH |
| Add $10.00 for OAT Hole, specify 3" or 9" down from top (1974 & After tend to be 9") | |||||||
| (Frameless Style Vent Window) | Details | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Pilot window | .125" | $298.78 | $358.53 | $358.53 | $484.02 | $484.02 | 2418 | ||
| Vent window | .250" | $107.40 | $128.88 | $128.88 | $173.99 | $173.99 | 2114 | ||
| Thick Pilot window | .187" | $331.97 | $398.37 | $398.37 | $537.80 | $537.80 | 2418-187 | ||
| Thick Vent window | .312" | $128.88 | $154.66 | $154.66 | --- | $208.79 | 2114-312 | ||
| Super Thick Pilot window | .250" | $365.17 | $438.20 | $438.20 | $591.58 | $591.58 | 2418-250 | ||
| 1/4" Side Windows may be more difficult to install | |||||||||
| Super Thick Vent window | .375" | $154.27 | $185.12 | $185.12 | $249.92 | $249.92 | 2114-375 | ||
| Pilot windows Assembled with a Vent: | |||||||||
| Assembled
Pilot with Vent Frameless Vent type |
Picture | .125" | $621.20 | $702.44 | $702.44 | $873.03 | $873.02 | 2419 | |
| Extra Thick | Picture | .187" | $675.88 | $768.05 | $768.05 | --- | $961.61 | 2419-187 | |
| Super Thick | Picture | .250" | $734.46 | $838.35 | $838.35 | $1,056.51 | $1,056.51 | 2419-250 | |
| 1/4" Side Windows may be more difficult to install | |||||||||
| Pictures | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
||
| .125" | $197.23 | $236.68 | $236.68 | $319.51 | $319.51 | 2133-125 | |||
| Extra Thick | .187" | $238.24 | $285.89 | $285.89 | $385.95 | $385.95 | 2133-187 | ||
| Super Thick | .250" | $281.20 | $337.44 | $337.44 | $455.55 | $455.55 | 2133-250 | ||
| 1/4" Side Windows may be more difficult to install | |||||||||
| Door windows Assembled with a Vent: | |||||||||
| Assembled
Door with Vent Frameless Vent type |
Picture | .125" | $541.16 | $602.08 | $602.08 | $730.03 | $730.03 | 2283 | |
| Extra Thick | Picture | .187" | $603.65 | $677.07 | $677.07 | --- | $831.26 | 2283-187 | |
| Super Thick | Picture | .250" | $671.99 | $759.09 | $759.09 | $941.99 | $941.99 | 2283-250 | |
| 1/4" Side Windows may be more difficult to install | |||||||||
| Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
Dark Gray (W/XT-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
||
| Right or Left |
.125" | $208.95 | $250.74 | $250.74 | $250.74 | $338.50 | $338.50 | 2544-RH or 2544-LH |
|
| Extra Thick | Right or Left |
.187" | $228.48 | $274.17 | $274.17 | $274.17 | $370.13 | $370.13 | 2544-187-RH
or 2544-187-LH |
| Super Thick | Right or Left |
.250" | $249.96 | $299.95 | $299.95 | $299.95 | $404.93 | $404.93 | 2544-250-RH
or 2544-250-LH |
| 1/4" Side Windows may be more difficult to install. | |||||||||
3rd windows
| LH is Rear Passenger Door | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
Dark Gray (W/XT-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Right or Left |
.125" | $150.36 | $180.44 | $180.44 | $180.44 | $243.59 | $243.59 | 2415-RH or 2415-LH |
|
| Extra Thick | Right or Left |
.187" | $181.61 | $217.93 | $217.93 | $217.93 | $294.21 | $294.21 | 2415-187-RH
or 2415-187-LH |
| Super Thick | Right or Left |
.250" | $216.76 | $260.11 | $260.11 | $260.11 | $251.15 | $351.15 | 2415-250-RH
or 2415-250-LH |
| 1/4" Side Windows may be more difficult to install. | |||||||||
| LH is Cargo Door | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
Dark Gray (W/XT-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Thick | Right or Left |
.125" | $181.61 | $217.93 | $217.93 | $217.93 | $294.21 | $294.21 | 2545-RH
or 2545-LH |
| Extra Thick | Right or Left |
.187" | $199.18 | $239.02 | $239.02 | $239.02 | $322.68 | $322.68 | 2545-187-RH
or 2545-187-LH |
| Super Thick | Right or Left |
.250" | $232.38 | $278.86 | $278.86 | $278.86 | $376.46 | $376.46 | 2545-250-RH
or 2545-250-LH |
| 1/4" Side Windows may be more difficult to install. | |||||||||
| Pictures | Thickness | Clear
(W-) |
Part Number
(G.L.A.P.) |
|
| Right or
Left |
.100" | $372.30 | 2497-RH or 2497-LH |
888-826-2043
|
Price and availability are subject to change without notice. Mistakes happen, mistaken prices will not be honored.
Add Shipping, processing, handling and insurance.
|
