PIPER
| PAGE INDEX:
Go to: Windshields Go to: Pilot Windows Go to: Door Windows Go to: 2nd Windows Go to: 3rd Windows (LH is Rear Passenger Door) Go to: Rear Windows (LH is Cargo Door) --------------------------- OTHER PAGES: Go to: Miscellaneous Piper Parts Go to: Windshield and Window Cleaners Go to: Special Drills for Plastic |

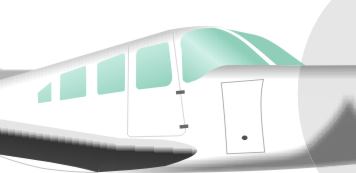

PA-32-260, PA-32-300 &
PA-32R-300
|
| NOTE: Most Post 1974 PA-32 Aircraft are equipped with 1/4" windshields. | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
|
|
|
Right or Left |
.125" | $312.45 | $374.93 | $374.93 | $506.16 | $506.16 | 2038-II-RH or 2038-II-LH |
|
Thick
|
Right or Left |
.187" | $357.36 | $428.83 | $428.83 | $578.92 | $578.92 | 2038-II-187-RH or 2038-II-187-LH |
|
Extra Thick (Piper Option) (NOT recommended for aircraft equipped Originally with 1/8" Windshield)* |
Right or Left |
.250" | $453.05 | $543.65 | $543.65 | $733.93 | $733.93 | 2038-II-250-RH
or 2038-II-250-LH |
| Add $10.00 for OAT Hole, specify 3" or 9" down from top (1974 & After tend to be 9") | ||||||||
| (Frameless Style Vent Window) | Details | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Pilot window | .125" | $242.15 | $290.57 | $290.57 | $392.27 | $392.27 | 2139 | ||
| Vent window | .250" | $107.40 | $128.88 | $128.88 | $173.99 | $173.99 | 2114 | ||
| Thick Pilot window | .187" | $271.44 | $325.72 | $325.72 | $439.73 | $439.73 | 2139-187 | ||
| Thick Vent window | .312" | $128.88 | $154.66 | $154.66 | --- | $208.79 | 2114-312 | ||
| Super Thick Pilot window | .250" | $298.78 | $358.53 | $358.53 | $484.02 | $484.02 | 2139-250 | ||
| 1/4" Side Windows may be more difficult to install | |||||||||
| Super Thick Vent window | .375" | $154.27 | $185.12 | $185.12 | $249.92 | $249.92 | 2114-375 | ||
| Pilot windows Assembled with a Vent: | |||||||||
| Assembled
Pilot with Vent Frameless Vent type |
Picture | .125" | $564.57 | $634.48 | $634.48 | $781.29 | $781.29 | 2479 | |
| Extra Thick | Picture | .187" | $615.34 | $695.41 | $695.41 | --- | $863.54 | 2479-187 | |
| Super Thick | Picture | .250" | $668.07 | $758.68 | $758.68 | $948.96 | $948.96 | 2479-250 | |
| 1/4" Side Windows may be more difficult to install | |||||||||
| Pictures | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
||
| .080" | $197.23 | $236.68 | $236.68 | --- | $319.51 | 2111 | |||
| Thick | .125" | $197.23 | $236.68 | $236.68 | $319.51 | $319.51 | 2111-125 | ||
| Extra Thick | .187" | $238.24 | $285.89 | $285.89 | $385.95 | $385.95 | 2111-187 | ||
| Super Thick | .250" | $281.20 | $337.44 | $337.44 | $455.55 | $455.55 | 2111-250 | ||
| 1/4" Side Windows may be more difficult to install | |||||||||
| Door windows Assembled with a Vent: | |||||||||
| Assembled
Door with Vent Frameless Vent type |
Picture | .125" | $541.16 | $602.08 | $602.08 | $730.03 | $730.03 | 2271 | |
| Extra Thick | Picture | .187" | $603.65 | $677.07 | $677.07 | --- | $831.26 | 2271-187 | |
| Super Thick | Picture | .250" | $671.99 | $759.09 | $759.09 | $941.99 | $941.99 | 2271-250 | |
| 1/4" Side Windows may be more difficult to install | |||||||||
| Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
Dark Gray (W/XT-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
||
| Right or Left |
.080" | $154.27 | $185.12 | $185.12 | $185.12 | --- | $249.92 | 2137-080-RH
or 2137-080-LH |
|
| Thick (Piper Option) | Right or Left |
.125" | $154.27 | $185.12 | $185.12 | $185.12 | $249.92 | $249.92 | 2137-RH or 2137-LH |
| Extra Thick | Right or Left |
.187" | $193.33 | $231.99 | $231.99 | $231.99 | $313.19 | $313.19 | 2137-187-RH
or 2137-187-LH |
| Super Thick | Right or Left |
.250" | $230.43 | $276.51 | $276.51 | $276.51 | $373.29 | $373.29 | 2137-250-RH
or 2137-250-LH |
| 1/4" Side Windows may be more difficult to install. | |||||||||
3rd windows
| LH is Rear Passenger Door | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
Dark Gray (W/XT-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
||
| Right or Left |
.080" | $150.36 | $180.44 | $180.44 | $180.44 | --- | $243.59 | 2135-080-RH
or 2135-080-LH |
||
| Thick | Right or Left |
.125" | $150.36 | $180.44 | $180.44 | $180.44 | $243.59 | $243.59 | 2135-RH or 2135-LH |
|
| Extra Thick | Right or Left |
.187" | $181.61 | $217.93 | $217.93 | $217.93 | $294.21 | $294.21 | 2135-187-RH
or 2135-187-LH |
|
| Right or Left |
.250" | $216.76 | $260.11 | $260.11 | $260.11 | $251.15 | $351.15 | 2135-250-RH
or 2135-250-LH |
||
| 1/4" Side Windows may be more difficult to install. | ||||||||||
| Window With 7"x14" Photo Port | Right or Left |
.187" | $716.42 | $795.10 | $795.10 | --- | --- | $960.34 | 2735-RH
or 2735-LH |
|
| Extra Thick | Right or Left |
.250" | $751.57 | $837.28 | $837.28 | --- | $1,017.28 | $1,017.28 | 2735-250-RH or 2735-250-LH |
|
| LH is Cargo Door | Thickness | Clear (W-) |
Green (W/T-) |
Gray (W/G-) |
Dark Gray (W/XT-) |
SC Green (SC-W/T-) |
SC Gray (SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Right or Left |
.080" | $146.46 | $175.75 | $175.75 | $175.75 | --- | $237.26 | 2138-080-RH
or 2138-080-LH |
|
| Thick (Piper Option) | Right or Left |
.125" | $146.46 | $175.75 | $175.75 | $175.75 | $237.26 | $237.26 | 2138-RH
or 2138-LH |
| Extra Thick | Right or Left |
.187" | $181.61 | $217.93 | $217.93 | $217.93 | $294.21 | $294.21 | 2138-187-RH
or 2138-187-LH |
| Super Thick | Right or Left |
.250" | $216.76 | $260.11 | $260.11 | $260.11 | $351.15 | $351.15 | 2138-250-RH
or 2138-250-LH |
| 1/4" Side Windows may be more difficult to install. | |||||||||
