PIPER
| PAGE INDEX:
Go to: Windshields Go to: Pilot Windows Go to: Door Windows Go to: 2nd Windows Go to: 3rd Windows (LH is Rear Passenger Door) --------------------------- OTHER PAGES: Go to: Miscellaneous Piper Parts Go to: Windshield and Window Cleaners Go to: Special Drills for Plastic . |

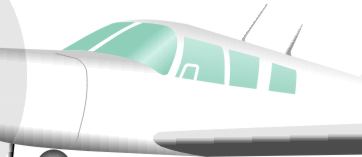

PA-32-260 Cherokee
Six
|
| Used On:
Thru 1973 Models |
Thickness | Clear
(W-) |
Green
(W/T-) |
Gray
(W/G-) |
SC Gray
(SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Right or
Left |
.125" | $134.00 | $160.80 | $160.80 | $217.08 | 2038-RH or 2038-LH |
|
| Thick | Right or
Left |
.187" | $147.00 | $176.40 | $176.40 | $238.14 | 2038-187-RH
or 2038-187-LH |
|
Extra Thick NOT RECOMMENDED |
Right or
Left |
.250"" | CALL | CALL | CALL | CALL | 2038-250-RH
or 2038-250-LH |
| Add $6.00 for OAT Hole, specify 3" or 9" down from top (Pre 1974 tend to be 3") | |||||||
| (framed style vent window) | Details | Thickness | Clear
(W-) |
Green
(W/T-) |
Gray
(W/G-) |
SC Gray
(SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Pilot window Framed Vent type |
.080" | $ 84.00 | $100.80 | $100.80 | CALL | 2130-080 | ||
| Thick | .125" | $ 84.00 | $100.80 | $100.80 | $136.08 | 2130 | ||
| Extra Thick | .187" | $ 98.00 | $117.60 | $117.60 | $158.76 | 2130-187 | ||
| Vent window Framed Vent type |
.125" | $ 28.00 | $ 33.60 | $ 33.60 | $ 45.36 | 1041 | ||
| Pilot windows Assembled with a Vent: | ||||||||
| Assembled
Pilot with Vent Frameless Vent type |
Picture | .125" | $258.00 | $285.60 | $285.60 | $343.56 | 2281 | |
| Extra Thick | Picture | .187" | $287.00 | $310.40 | $310.40 | CALL | 2281-187 | |
| Super Thick | Picture | .250" | $314.00 | $352.80 | $352.80 | CALL | 2281-250 | |
| 1/4" Side Windows may be more difficult to install | ||||||||
| Pictures | Thickness | Clear
(W-) |
Green
(W/T-) |
Gray
(W/G-) |
SC Gray
(SC-W/G-) |
Part Number
(G.L.A.P.) |
||
| .080" | $ 66.00 | $ 79.20 | $ 79.20 | CALL | 2111 | |||
| Thick | .125" | $ 66.00 | $ 79.20 | $ 79.20 | $106.92 | 2111-125 | ||
| Extra Thick | .187" | $ 85.00 | $102.00 | $102.00 | $137.70 | 2111-187 | ||
| Super Thick | .250" | $ 99.00 | $118.80 | $118.80 | $160.38 | 2111-250 | ||
| 1/4" Side Windows may be more difficult to install | ||||||||
| Door windows Assembled with a Vent: | ||||||||
| Assembled
Door with Vent Frameless Vent type |
Picture | .125" | $243.00 | $264.60 | $264.60 | $331.02 | 2271 | |
| Extra Thick | Picture | .187" | $275.00 | $282.40 | $282.40 | CALL | 2271-187 | |
| Super Thick | Picture | .250" | $283.00 | $315.60 | $384.06 | CALL | 2271-250 | |
| 1/4" Side Windows may be more difficult to install | ||||||||
| Thickness | Clear
(W-) |
Green
(W/T-) |
Gray
(W/G-) |
Any Tint
(W/XT-) |
SC Gray
(SC-W/G-) |
Part Number
(G.L.A.P.) |
||
| Right or Left |
.080" | $ 60.00 | $ 72.00 | $ 72.00 | $ 72.00 | CALL | 2134-080-RH or
2134-080-LH |
|
| Thick | Right or Left |
.125" | $ 60.00 | $ 72.00 | $ 72.00 | $ 72.00 | $ 97.20 | 2134-RH or 2134-LH |
| Extra Thick | Right or Left |
.187" | $ 71.00 | $ 85.20 | $ 85.20 | $ 85.20 | $115.02 | 2134-187-RH
or 2134-187-LH |
| Right or Left |
.250" | $ 83.00 | $ 99.60 | $ 99.60 | $ 99.60 | $134.46 | 2134-250-RH
or 2134-250-LH |
|
| 1/4" Side Windows may be more difficult to install. | ||||||||
| LH is Rear Passenger Door | Thickness | Clear
(W-) |
Green
(W/T-) |
Gray
(W/G-) |
Any Tint
(W/XT-) |
SC Gray
(SC-W/G-) |
Part Number
(G.L.A.P.) |
|
| Right or Left |
.080" | $ 59.00 | $ 70.80 | $ 70.80 | $ 70.80 | CALL | 2135-080-RH
or 2135-080-LH |
|
| Thick | Right or Left |
.125" | $ 59.00 | $ 70.80 | $ 70.80 | $ 70.80 | $ 95.20 | 2135-RH or 2135-LH |
| Extra Thick | Right or Left |
.187" | $ 70.00 | $ 84.00 | $ 84.00 | $ 84.00 | $113.40 | 2135-187-RH
or 2135-187-LH |
| Right or Left |
.250" | $ 81.00 | $ 97.20 | $ 97.20 | $ 97.20 | $131.22 | 2135-250-RH
or 2135-250-LH |
|
| 1/4" Side Windows may be more difficult to install. | ||||||||
|
Prices are subject to change without notice
+shipping and Handling
|
