Home > Catalog > Piper > PA-31 > 31-7712019 & UP

PIPER

PAGE INDEX:
Go to: Windshields

Go to: Forward & Storm Vent Windows

Go to: 2nd Windows (RH is Emergency Exit)

Go to: 3rd Windows

Go to: 4th Windows (LH is Cabin Door)

Go to: Rear Windows
Go to: Wingtip Lens
---------------------------
OTHER PAGES:
Go to: Miscellaneous Piper Parts
Go to: Windshield and Window Cleaners
Go to: Special Drills for Plastic

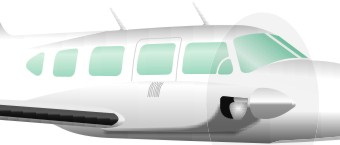

PA-31(-310) & PA-31-325
Navajo

MODEL NUMBER SERIAL NUMBERS
PA-31 (310)
PA-31-325		 31-7712019 & UP

.


Windshields

(Acrylic)

Thickness

 Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)

Right or
Left

.250" $639.73 $767.68 $767.68 $1,036.37 $1,036.37 2164-RH or
2164-LH



Forward & Storm Windows



Thickness

 Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
WITHOUT
CREW DOOR		 VENT

Right or
Left

.375"

 $289.11 $346.93 $346.93 $468.36 $468.36

2371-RH or
2371-LH

OUTER Right or
Left

.150"

 $387.53 - - - -

2368-RH or
2368-LH

Right or
Left

Thick

.187"

 $410.08 - - - - 2368-187-RH or
2368-187-LH
Right or
Left 		Extra Thick .250" $444.94 - - - -

2368-250-RH or
2368-250-LH
INNER Right or
Left 		.060/.080" $219.40 $263.27 $263.27 --- $355.42

2405-RH or
2405-LH

WITH LEFT CREW DOOR VENT

.375"

 $289.11 $346.93 $346.93 $468.36 $468.36

2372
OUTER Left

.150"

 $356.77 - - - -

2370

Left Thick

.187"

 $383.43 - - - -

2370-187
Left Extra Thick

.250"

 $416.24 - - - - 2370-250
INNER FORMED .060/.080" $227.60 $273.12 $273.12 --- $368.71 2404



2nd Windows

Right is emergency exit

Thickness

 Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 Dark Gray
(W/XT-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
OUTER WINDOWS

Right or
Left

.150"

 $352.67 $423.21 $423.21 $423.21 --- $571.33

2373

Right or
Left

.187"
Thick

 $373.18 $447.81 $447.81 $447.81 $604.55 $604.55

2373-187

Right or
Left 		.250"
Extra Thick		 $401.88 $482.26 $482.26 $482.26 $651.05 $651.05

2373-250


INNER WINDOWS

Right or
Left

.060/.080"

 $184.54 $221.45 $221.45 $221.45 --- $298.95

2407



3rd Windows



Thickness

 Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 Dark Gray
(W/XT-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
OUTER WINDOWS

Right or
Left

.150"

 $352.67 $423.21 $423.21 $423.21 --- $571.33

2373

Right or
Left

.187"
Thick

 $373.18 $447.81 $447.81 $447.81 $604.55 $604.55

2373-187

Right or
Left 		.250"
Extra Thick		 $401.88 $482.26 $482.26 $482.26 $651.05 $651.05

2373-250


INNER WINDOWS

Right or
Left

.060/.080"

 $184.54 $221.45 $221.45 $221.45 --- $298.95

2407



4th Windows

Left is Cabin Door

Thickness

 Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 Dark Gray
(W/XT-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)
OUTER WINDOWS

Right or
Left

.150"

 $266.55 $319.87 $319.87 $319.87 --- $431.82

2374-RH or

2374-LH

Right or
Left

.187"
Thick

 $285.01 $342.01 $342.01 $342.01 $461.71 $461.71

2374-187-RH or

2374-187-LH

Right or
Left 		.250"
Extra Thick		 $330.12 $396.14 $396.14 $396.14 $534.79 $534.79

2374-250-RH or

2374-250-LH

Assembled with Photo Window
RH ONLY		 .250"
Extra Thick		 $826.32 $991.58 $991.58 --- --- $1,338.64 2445-RH

INNER WINDOWS

Right or
Left (Cabin Door)

.060/.080"

 $172.24 $206.68 $206.68 $206.68 --- $279.02

2408-RH or

2408-LH



Rear Windows

Left is without large Baggage door

Thickness

 Clear
(W-)		 Green
(W/T-)		 Gray
(W/G-)		 Dark Gray
(W/XT-)		 SC Green
(SC-W/T-)		 SC Gray
(SC-W/G-)		 Part Number
(G.L.A.P.)

Right or
Left

.150"

 $245.25 $305.10 $305.10 $305.10 --- $411.89

2375-RH or

2375-LH

Right or
Left

.187"
Thick

 $266.55 $319.87 $319.87 $319.87 $431.82 $431.82

2375-187-RH or

2375-187-LH

Right or
Left

 .250"
Extra Thick		 $317.82 $381.38 $381.38 $381.38 $514.86 $514.86

2375-250-RH or

2375-250-LH




Wingtip Lenses

  Thickness Clear
(W-)		 Part Number
(G.L.A.P.)
With Nav & Strobe Lights Right or
Left		 .080" $343.01 2575-RH or
2575-LH
With Nav, Strobe & Recognition  Lights
(LARGE "L" TYPE)		 Right or
Left		 .080" $290.35 2505-RH or
2505-LH


888-826-2043

Order your parts online E-mail us with your questions

Home > Catalog > Piper > PA-31 > 31-7712019 & UP

Price and availability are subject to change without notice. Mistakes happen, mistaken prices will not be honored.
Add Shipping, processing, handling and insurance.
