Rear side window |
|
|

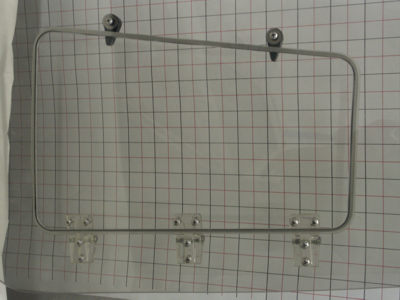

vent window from outside aircraft |
|
|

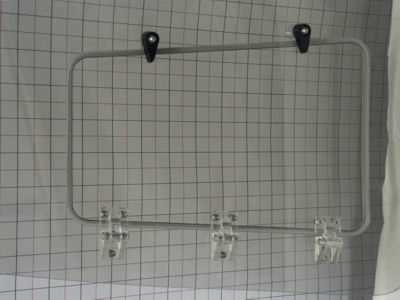

Vent window from inside cabin
|
|
|
Hinge |
Typical Latch |
2457
|
Rear side window |
|
|
vent window from outside aircraft |
|
|
Vent window from inside cabin
|
|
|
Hinge |
Typical Latch |
Description:
This Rear side window with observation Vent window.
Ideal for Aerial Photography & Observation from the back seat.
Features:
Vent may be placed on either Right or Left or on both sides of the aircraft.
Vent window opening dimensions 13.5" long, approx 8.5" tall on front edge, and 6.3" tall on rear edge
Made of .187" (.187") Acrylic
Part has shape
Price Includes FAA/PMA approval Tag and Installation instructions.
Meets or EXCEEDS all FAA/PMA requirements
Windows are FAA/PMA Approved in Clear Green and Gray
Can Ship Fed EX or UPS
Since part is slightly thicker than the original window, the part may need to be trimmed to fit.
Approved for:
| Cessna | |
| Model # | Serial #'s |
| 172D thru 172I (USAF T-41A) |
49545 ~ 57161 |
| P172D | ALL SERIAL NUMBERS |
| R172E (USAF T-41B, T-41C, T-41D) |
R172-0001 ~ R172-0335 |
| REIMS AVIATION S.A. | |
| F172D thru F172H | F172-0001 ~ F172-0559 |
| FR172E | FR172-0001 ~ FR172-0060 |
.
| Alternate Part numbers: | NA |
| Installation Instructions: | |
| Use appropriate Cessna Service manuals |
Part number Replacement Table:
| GLAP Part # | OEM Part Number |
